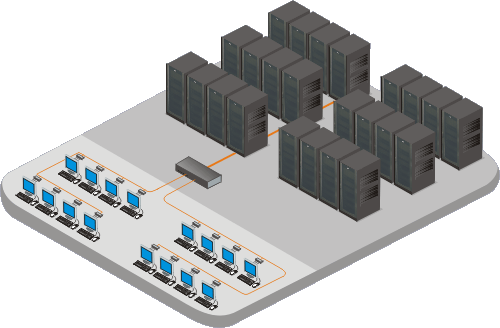

DVI光纤矩阵KVM切换器方案图示

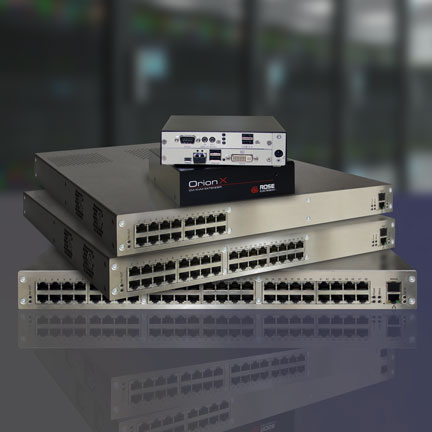

DVI光纤矩阵KVM切换器产品介绍

Orion XC是一款端口数量固定的DVI KVM矩阵。和ORION X系列相比，它的结构更加紧凑，它包含三件套产品：连接电脑端的发射端，连接用户工作站的接收端和中央DVI矩阵。is a fixed port version of the Orion X-series switches. This reduces the cost and makes the unit more compact. It also is a three-component system consisting of: transmitters at the video or computer source, a central switch, and receivers at the user station.

ORION XC系列主要有以下几款型号：The ports in the Orion XC switch chassis are fixed and can be either all CATx ports or mixed fiber and CATx. The Orion XC is available in six models:

• 16 CATx ports in 1U
• 32 CATx ports in 1U
• 48 CATx ports in 1U
• 64 CATx ports in 2U
• 80 CATx ports in 2U
• 48 CATx ports and 16 fiber ports in 2U
• 48 CATx ports and 32 fiber ports in 2U

ORION XC的每个端口都可以设定为输入或输出端口，取决于该端口所连接的是接收端还是发射端。这样，它简化了系统规划，不需要考虑多少个输入或输出端口，只需要端口总数即可。Each port of the switch is automatically configured to be an input or an output port depending on whether a transmitter or receiver unit is connected to it. This simplifies your system planning because you do not have to decide in advance, how many input or output ports – only the total number of ports.

支持发射商和接收端的距离如下Distances of the transmitters or receivers can be:

• 使用单模光纤可以远达10公里Up to 33,000 feet (10Km) using single-mode fiber cable
• 使用多模OM3光纤可达400米Up to 1,300 feet (400m) using multi-mode OM3 fiber cable
• 使用网线可传输140米Up to 460 feet (140m) using CATx cable

本产品支持视频分辨率高达1920*1200，在切换过程中无任何延时，是数据中心管理、广播应用、金融机构等的理想选择。用户The product supports video resolutions up to 1920 x 1200 @ 60Hz and all DVI single-link resolutions. Video sources running at the same resolution can be switched instantly with no delay or blanking which makes it ideal for command centers, broadcast applications, financial institutions, and many more. The receivers include an intuitive OSD for easy use and configuration at each user station through the attached USB keyboard and mouse.

它还可选支持以下几种情况Other capabilities optionally available are:

• VGA输入 input
• Dual-link DVI输出输入DVI input/output
• SD/HD/3G-SDI输入 input
• HDMI输入输出 input/output
• 透明USB2.0 Transparent USB 2.0
• RS232/RS422串口接口 serial interface
• 模拟或数字音频Analog or digital audio
• 冗余供电Redundant power supply
• 机柜配件Rack mount kit (19")

它还有一些增强的功能，支持以下软件工具，方便企业环境中的特殊应用To enhance the functionality of the product software utilities are available to provide additional features that are useful in an enterprise environment.

• 1. JAVA Tool, Extended Switching and Presets
• 2: #1 plus additional API
• 3. SNMP和系统登录监控 and Syslog for unit monitoring
• 4. 级联或堆叠Cascading / Stacking
• 5. 多屏控制Multi-Screen Control

产品规格

Dimensions (W x D x H)	80-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U) 64-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U) 48-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 32-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 16-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 8-port: 8.7" x 5.7" x 1.75" (220 x 146 x 44.5 mm) (1U)
Weight	80-port: 15.9 lbs (7.2 kgs) 64-port: 15.9 lbs (7.2 kgs) 48-port: 9 lbs (4.1 kgs) 32-port: 8.8 lbs (4 kgs) 16-port: 8.6 lbs (3.9 kgs) 8-port: 1.9 lbs (0.9 kgs)
Power	90-240 VAC 50-60 Hz Optional redundant PSU 80-port: 125W 64-port: 115W 48-port: 90W 32-port: 65W 16-port: 40W 8-port: 13W
Resolution	DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048 VGA video: 1920 x 1200 HDMI video: 1920 x 1200 SDI: per SMPTE spec up to 3G
Distance	CATx: 460' (140m) Multi-mode fiber: (62.5μ): 650' (200m) Multi-mode fiber: (50μ): 1,300' (400m) Multi-mode fiber: (50μ) OM3: 3,300' (1km) Single-mode fiber: (9μ): 33,000' (10km)
Connectors	Transmitters/receivers: Dual LC fiber or CATx SD/HD/3G-SDI:Mini coax replaces fiber SFP Ethernet control port: RJ45 jack RS232 control port: RJ45 jack Power: IEC-320 receptacle

Controls	On-screen display (at each KVM station) Web, FTP, Telnet, SMTP, Serial, IR
Environment	Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing

产品型号

Orion XC Switches
OXS-XC48C32F	80 Ports, Redundant PSU, 48x CATx + 32x Fiber, 2U
OXS-XC48C16F	64 Ports, Redundant PSU, 48x CATx + 16x Fiber, 2U
OXS-XC080C	Orion XC, 80 Ports, Redundant PSU, CATx, 2U
OXS-XC064C	Orion XC, 64 Ports, Redundant PSU, CATx, 2U
OXS-XC048C	Orion XC, 48 Ports, Redundant PSU, CATx, 1U
OXS-XC032C	Orion XC, 32 Ports, Redundant PSU, CATx, 1U
OXS-XC016C	Orion XC, 16 Ports, Redundant PSU, CATx, 1U
OXS-XC008C	Orion XC, 8 Ports, Redundant PSU, CATx, 1U
Orion-X software utilities
SW-OXS-XC-JT	Option 1: JAVA Tool + Extended Switching + Presets
SW-OXS-XC-JT+API	Option 2: Bundle 1 + API
SW-OXS-XC-SNMP+SL	Option 3: SNMP & SYSLOG
SW-OXS-XC-STACK	Option 4: Cascading / stacking
SW-OXS-XC-MSC	Option 5: Multi-Screen Control
Orion X Receivers – CATx
OR2-SRDTXUD1D	DVI-D, USB HID
OR2-SRDTXTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDTXUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDTXTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OR4-SRDTXTD2D/AUD	Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Receivers – Multi-mode Fiber
OR2-SRDFMUD1D	DVI-D, USB HID
OR2-SRDFMTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDFMUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDFMTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Receivers – Single-mode Fiber
OR2-SRDFSUD1D	DVI-D, USB HID

OR2-SRDFSTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDFSUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDFSTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Transmitters – CATx
OT2-SLDTXUD1D	DVI-D, USB HID
OT2-SLDTXUD1V	DVI-I (VGA), USB HID
OT2-SLDTXTD1D	DVI-D, USB HID, USB 2.0
OT4-SLDTXTD1V	DVI-I (VGA), USB USB 2.0, HID
OT2-SLDTXUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDTXUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDTXTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDTXTD2D/AUD	Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDTXTD1V/AUD	DVI-I (VGA), USB USB 2.0, HID, Audio, Serial
Orion X Transmitters – Multi-mode Fiber
OT2-SLDFMUD1D	DVI-D, USB HID
OT2-SLDFMUD1V	DVI-I (VGA), USB HID
OT2-SLDFMTD1D	DVI-D, USB HID, USB 2.0
OT4-SLDFMTD1V	DVI-I (VGA), USB HID, USB 2.0
OT2-SLDFMUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDFMUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDFMTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDFMTD1V/AUD	DVI-I (VGA), USB HID, USB 2.0, Audio, Serial
Orion X Transmitters – Single-mode Fiber
OT2-SLDFSUD1D	DVI-D, USB HID
OT2-SLDFSUD1V	DVI-I (VGA), USB HID
OT2-SLDFSTD1D	DVI-D, USB HID, USB 2.0

OT4-SLDFSTD1V	DVI-I (VGA), USB HID, USB 2.0
OT2-SLDFSUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDFSUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDFSTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDFSTD1V/AUD	DVI-I (VGA), USB HID, USB 2.0, Audio, Serial
