DVI光纤矩阵KVM切换器

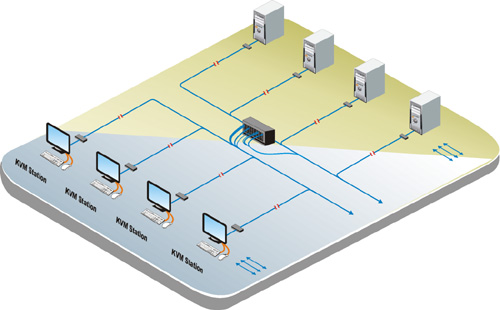

DVI光纤矩阵KVM切换器方案图示
-
延伸你的KVM工作站和电脑到:
- 使用单模光纤到33,000' (10Km)
- 使用多模光纤到1,300' (400m)
- 使用网线到450' (140m)
- 支持屏幕分辨率高达1920 x 1200 @ 60Hz以及所有的DVI分辨率包括高清的分辨率1080P
- 每个用户工作站使用直观OSD，方便使用和设置
- 信号可以通过网线和光纤线输入，也可以混合光纤和网线进行输入输出。
- 每个端口均可设置成输入或输出，连接发射端模块即为输入，连接接收端模块即为输出
- 可扩展结构允许系统增长时，加入额外的输入输出卡，每张卡可以增加8个端口
- 切换视频信号时无显示空白，无延时，保持和视频源信号完全相同
- 支持Available options:
- DVI or VGA视频输入
- 透明 USB 2.0
- 串口
- 模拟和数字音频Analog or Digital audio
- 冗余电源Redundant PSU 在
- 机架式Rack mountable (19?/ 9U)

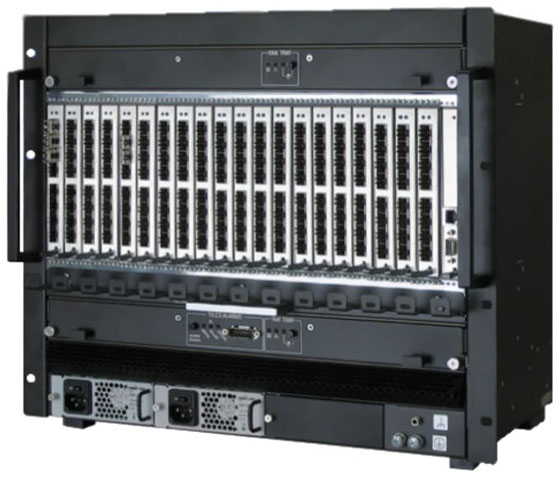

Orion X独特而全新的架构使得它成为最强大和多功能的光纤矩阵KVM切换器。作为世界上目前最多用户端口和服务器端口的KVM切换器，和视频源相同的分辨率同步切换无延时和空白的特性，使得它成为控制中心，广播应用，金融机构等的理想选择。
Orion X160是160口光纤矩阵KVM切换器，Orion X288是288口的光纤矩阵KVM切换器，每个端口既可以是输出端口，也可以是输入端口。这样使用者就可以任意搭配用户和电脑的数量。
Most systems are configured for either CATx connectors or fiber and both the inputs and outputs must match. The Orion X allows you to mix or match cable types. If you have a computer system 5 miles away, it can be connected to the Orion X via singlemode fiber cable. The user station might be 20 feet away and this can be connected using industry standard CATx cable, greatly reducing the installation cost.
Transmitters and receivers consist of a main card and one of seven optional cards.
光纤矩阵KVM切换器部件编号
OXS-CH48-00 48口光纤矩阵KVM切换器，不含卡
OXS-CH80-00 80口光纤矩阵KVM切换器，不含卡
OXS-CH160-00 160口光纤矩阵KVM切换器，不含卡
OXS-CH288-00 288口光纤矩阵KVM切换器，不含卡
Orion X Switch I/O Cards OXC-OXS-CNTR Orion X, Controler Card, RJ45 Ethernet Port, RS232, DVI, USB OXC-08-TP Orion X-Series I/O Board, 8 Ports, CATx OXC-08-GBIC/8FM Orion X-Series I/O Board, 8 Ports, Fiber Multi-mode OXC-08-GBIC/8FS Orion X-Series I/O Board, 8 Ports, Fiber Single-mode OXC-08-GBIC/8F3 Orion X-Series I/O Board, 8 Ports, Fiber Single-mode, 3.125 Gbps Orion-X software utilities SW-OXS-XC-JT Option 1: JAVA Tool + Extended Switching + Presets SW-OXS-XC-JT+API Option 2: Bundle 1 + API SW-OXS-XC-SNMP+SL Option 3: SNMP & SYSLOG SW-OXS-XC-STACK Option 4: Cascading / stacking SW-OXS-XC-MSC Option 5: Multi-Screen Control Orion X Receivers – CATx OR2-SRDTXUD1D DVI-D, USB HID OR2-SRDTXTD1D DVI-D, USB HID, USB 2.0 OR2-SRDTXUD1D/AUD DVI-D, USB HID, Audio, Serial OR4-SRDTXTD1D/AUD DVI-D, USB HID, USB 2.0, Audio, Serial OR4-SRDTXTD2D/AUD Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Receivers – Multi-mode Fiber OR2-SRDFMUD1D DVI-D, USB HID OR2-SRDFMTD1D DVI-D, USB HID, USB 2.0 OR2-SRDFMUD1D/AUD DVI-D, USB HID, Audio, Serial OR4-SRDFMTD1D/AUD DVI-D, USB HID, USB 2.0, Audio, Serial Orion X Receivers – Single-mode Fiber OR2-SRDFSUD1D DVI-D, USB HID OR2-SRDFSTD1D DVI-D, USB HID, USB 2.0 OR2-SRDFSUD1D/AUD DVI-D, USB HID, Audio, Serial OR4-SRDFSTD1D/AUD DVI-D, USB HID, USB 2.0, Audio, Serial Orion X Transmitters – CATx OT2-SLDTXUD1D DVI-D, USB HID OT2-SLDTXUD1V DVI-I (VGA), USB HID OT2-SLDTXTD1D DVI-D, USB HID, USB 2.0 OT4-SLDTXTD1V DVI-I (VGA), USB USB 2.0, HID OT2-SLDTXUD1D/AUD DVI-D, USB HID, Audio, Serial OT4-SLDTXUD1V/AUD DVI-I (VGA), USB HID, Audio, Serial OT4-SLDTXTD1D/AUD DVI-D, USB HID, USB 2.0, Audio, Serial OT4-SLDTXTD2D/AUD Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial OT4-SLDTXTD1V/AUD DVI-I (VGA), USB USB 2.0, HID, Audio, Serial Orion X Transmitters – Multi-mode Fiber OT2-SLDFMUD1D DVI-D, USB HID OT2-SLDFMUD1V DVI-I (VGA), USB HID OT2-SLDFMTD1D DVI-D, USB HID, USB 2.0
OT2-SLDFMUD1D DVI-D, USB HID OT2-SLDFMUD1V DVI-I (VGA), USB HID OT2-SLDFMTD1D DVI-D, USB HID, USB 2.0 OT4-SLDFMTD1V DVI-I (VGA), USB HID, USB 2.0 OT2-SLDFMUD1D/AUD DVI-D, USB HID, Audio, Serial OT4-SLDFMUD1V/AUD DVI-I (VGA), USB HID, Audio, Serial OT4-SLDFMTD1D/AUD DVI-D, USB HID, USB 2.0, Audio, Serial OT4-SLDFMTD1V/AUD DVI-I (VGA), USB HID, USB 2.0, Audio, Serial Orion X Transmitters – Single-mode Fiber OT2-SLDFSUD1D DVI-D, USB HID OT2-SLDFSUD1V DVI-I (VGA), USB HID OT2-SLDFSTD1D DVI-D, USB HID, USB 2.0 OT4-SLDFSTD1V DVI-I (VGA), USB HID, USB 2.0 OT2-SLDFSUD1D/AUD DVI-D, USB HID, Audio, Serial OT4-SLDFSUD1V/AUD DVI-I (VGA), USB HID, Audio, Serial OT4-SLDFSTD1D/AUD DVI-D, USB HID, USB 2.0, Audio, Serial OT4-SLDFSTD1V/AUD DVI-I (VGA), USB HID, USB 2.0, Audio, Serial Orion X Power supplies SWP-RPS-OXS Plug-in PSU, for Orion X 48 ports (Spare Part or Redundancy) SWP-RPS-OXS-160 Plug-in PSU, for Orion X 80 ports (Spare Part or Redundancy) SWP-RPS-OXS-080 Plug-in PSU, for Orion X 160 ports (Spare Part or Redundancy) SWP-RPS-OXS-048 Plug-in PSU, for Orion X 288 ports (Spare Part or Redundancy) Orion X fan trays and filter pads
FAN-OXS-288 Fan Tray, for Orion X 48 ports (Spare Part) FAN-OXS-160 Fan Tray, for Orion X 80 ports (Spare Part) FAN-OXS-080 Fan Tray, for Orion X 160 ports (Spare Part) FAN-OXS-048 Fan Tray, for Orion X 288 ports (Spare Part) FLT-OXS-288 Filter Pads, for Orion X 48 ports (Spare Part) FLT-OXS-160 Filter Pads, for Orion X 80 ports (Spare Part) FLT-OXS-080 Filter Pads, for Orion X 160 ports (Spare Part) FLT-OXS-048 Filter Pads, for Orion X 288 ports (Spare Part)
