CrystalView XTENDER(DVI KVM延长器)

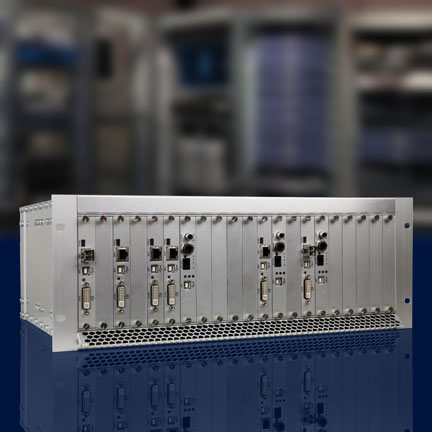

产品图示
产品介绍
- 有21卡一种型号
- 延长距离，网线140米，OM3多模光纤1公里，单模光纤10公里
- DVI-D分辨率2048X1152
- 基本型号采用DVI视频和USB键盘鼠标
- 可选：音频，串口，VGA，HDMI,双显示，数字或模拟音频，冗余电源
Orion XTender模块化的设计使得它容易定制，应用方便。本设备支持网线，多模光纤和单模光纤线，可支持分辨率 1920 x 1200（单显示） 或 2048 x 1152（双显示）。使用艺术级的视频压缩技术，使得在远距离传输高品质的视频信号时，损失减到最少。

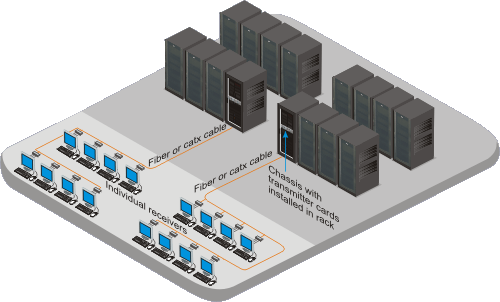

每个Orion XTender模块可以按以下四种形式任意安装。基本的2卡采用一个基本单元和另一个系统需要的其它模块，4卡包含一到二个基本单元，二到三个其它模块，6卡和21卡分别有6个和21个模块，这样可以满足客户的不同的需要。
基本单元支持DVI-D和USB人体工学设备如键盘鼠标，图形板，可选模块支持VGA,HDMI，数字和模拟音频，串口 (RS232 or RS422)和全透明USB 2.0.
部件编号
| Orion XTender Chassis | |
|---|---|
| OEE-CH21 | Orion XT, 21 Slot Chassis, 1x PSU |
| OEE-CH21/RP | Orion XT, 21 Slot Chassis, Internal PSU, Setup for Redundancy Power, 4U |
| Orion XTender transmitter card (DVI-D+USB-HID) | |
| OEC-SLDTXUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, CATx |
| OEC-SLDFMUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber MM |
| OEC-SLDFSUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber SM |
| OEC-SLDF3UD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber SM-3.125 |
| OEC-SLD2CUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, 2x CATx, Redundant Link |
| OEC-SLD2MUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SLD2SUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender transmitter card (DVI-I+USB-HID) | |
| OEC-SLDTXUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, CATx |
| OEC-SLDFMUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, Fiber MM |
| OEC-SLDFSUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, Fiber SM |
| OEC-SLDTXUD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, CATx |
| OEC-SLDFMUD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber MM |
| OEC-SLDFSUD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber SM |
| OEC-SLDF3UD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber SM-3.125 |
| OEC-SLD2CUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x CATx, Redundant Link |
| OEC-SLD2MUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SLD2SUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender transmitter card (DVI-D dual-link +USB-HID) | |
| OEC-SLDTXU1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, CATx |
| OEC-SLDFMU1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber MM |
| OEC-SLDFSU1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber SM |
| OEC-SLDF3U1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber SM-3.125 |
| Orion XTender transmitter card (DVI-D dual video+USB-HID) | |
| OEC-SLDTXU2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, CATx |
| OEC-SLDFMU2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber MM |
| OEC-SLDFSU2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber SM |
| OEC-SLDF3U2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber SM-3.125 |
| Orion XTender transmitter card (HDMI+USB-HID) | |
| OEC-SLDTXUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, CATx |
| OEC-SLDFSUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM |
| OEC-DLDTXUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, CATx, with Local HDMI-Out |
| OEC-DLDFSUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out |
| OEC-SLD2CUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, 2x CATx, Redundant Link |
| OEC-SLD2SUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, 2x Fiber SM, Redundant Link |
| OEC-DLD2CUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, CATx, with Local HDMI-Out, Redundant Link |
| OEC-DLD2SUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out, Redundant Link |
| OEC-SLDTX0H1H/IRK | Orion XT, Transmitter Card, HDMI, CATx |
| Orion XTender transmitter option card (USB 2.0) | |
| OEC-SLDFS0H1H/IRK | Orion XT, Transmitter Card, HDMI, Fiber SM |
| OEC-SLDTXT000/IRK | Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), CATx |
| OEC-SLDFMT000/IRK | Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), Fiber MM |
| OEC-SLDFST000/IRK | Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), Fiber SM |
| Orion XTender transmitter option cards | |
| OEC-L1H | Orion XT, Transmitter Optional Card, USB-HID (Max two devices) |
| OEC-L1E | Orion XT, Transmitter Optional Card, Embedded USB 2.0 full-speed (up to 36 Mbps) |
| OEC-LPS | Orion XT, Transmitter Optional Card, PS/2 KB/MS |
| OEC-L1AS | Orion XT, Transmitter Optional Card, Analog Audio + RS232 |
| OEC-L1A422 | Orion XT, Transmitter Optional Card, Analog Audio + RS422 |
| OEC-L1DA | Orion XT, Transmitter Optional Card, Digital Audio |
| OEC-L2DA | Orion XT, Transmitter Optional Card, 2x Digital Audio |
| OEC-L1AS+1H | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-L1AS+1E | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-L1AS+PS | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-L1A422+1H | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-L1A422+1E | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-L1A422+PS | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-L1DA+1H | Orion XT, Transmitter Optional Card, Digital Audio+RS232 + USB-HID |
| OEC-L1DA+1E | Orion XT, Transmitter Optional Card, Digital Audio+RS232 + Embedded USB 2.0 |
| OEC-L1DA+1AS | Orion XT, Transmitter Optional Card, Digital Audio + Analog Audio+RS232 |
| Orion XTender receiver card (DVI-D+USB-HID) | |
| OEC-SRDTXUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, CATx |
| OEC-SRDFMUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, Fiber MM |
| OEC-SRDFSUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, Fiber SM |
| OEC-SRDF3UD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, Fiber SM-3.125 |
| OEC-SRD2CUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, 2x CATx, Redundant Link |
| OEC-SRD2MUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SRD2SUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender receiver card (DVI-I+USB-HID) | |
| OEC-SRD2CUS1V/IRK | Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x CATx, Redundant Link |
| OEC-SRD2MUS1V/IRK | Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SRD2SUS1V/IRK | Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender receiver card (DVI-D dual-link+USB-HID) | |
| OEC-SRDTXU1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, CATx |
| OEC-SRDFMU1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber MM |
| OEC-SRDFSU1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber SM |
| OEC-SRDF3U1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber SM-3.125 |
| Orion XTender receiver card (DVI-D dual video+USB-HID) | |
| OEC-SRDTXU2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, CATx |
| OEC-SRDFMU2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber MM |
| OEC-SRDFSU2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber SM |
| OEC-SRDF3U2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber SM-3.125 |
| Orion XTender receiver card (HDMI+USB-HID) | |
| OEC-SRDTXUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, CATx |
| OEC-SRDFSUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM |
| OEC-DRDTXUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, CATx, with Local HDMI-Out |
| OEC-DRDFSUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out |
| OEC-SRD2CUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, 2x CATx, Redundant Link |
| OEC-SRD2SUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, 2x Fiber SM, Redundant Link |
| OEC-DRD2CUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, CATx, with Local HDMI-Out, Redundant Link |
| OEC-DRD2SUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM, with Local HDMI-B208Out, Redundant Link |
| OEC-SRDTX0H1H/IRK | Orion XT, Receiver Card, HDMI, CATx |
| Orion XTender receiver option card (USB 2.0) | |
| OEC-QRDTXT000/IRK | Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), CATx |
| OEC-QRDFMT000/IRK | Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), Fiber MM |
| OEC-QRDFST000/IRK | Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), Fiber SM |
| Orion XTender receiver option cards | |
| OEC-R1H | Orion XT, Receiver Optional Card, USB-HID (Max two devices) |
| OEC-R1E | Orion XT, Receiver Optional Card, Embedded USB 2.0 full-speed (up to 36 Mbps) |
| OEC-RPS | Orion XT, Receiver Optional Card, PS/2 KB/MS |
| OEC-R1AS | Orion XT, Receiver Optional Card, Analog Audio + RS232 |
| OEC-R1A422 | Orion XT, Receiver Optional Card, Analog Audio + RS422 |
| OEC-R1DA | Orion XT, Receiver Optional Card, Digital Audio |
| OEC-R2DA | Orion XT, Receiver Optional Card, 2x Digital Audio |
| OEC-R1AS+1H | Orion XT, Receiver Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-R1AS+1E | Orion XT, Receiver Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-R1AS+PS | Orion XT, Receiver Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-R1A422+1H | Orion XT, Receiver Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-R1A422+1E | Orion XT, Receiver Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-R1A422+PS | Orion XT, Receiver Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-R1DA+1H | Orion XT, Receiver Optional Card, Digital Audio+RS232 + USB-HID |
| OEC-R1DA+1E | Orion XT, Receiver Optional Card, Digital Audio+RS232 + Embedded USB 2.0 |
| OEC-R1DA+1AS | Orion XT, Receiver Optional Card, Digital Audio + Analog Audio+RS232 |
