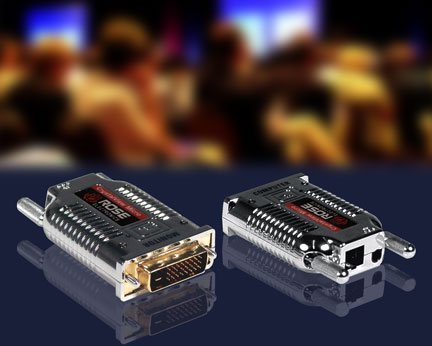

CrystalView DVI MICRO(DVI光纤显示延长器)
产品图示
产品介绍
紧凑型的单一显示DVI光纤延长器（不带键盘鼠标信号延长）
支持300米DVI高分辨率1920X1200
SC接头多模光纤
自动检测EDID信息
CrystalView DVI Micro Fiber是一款紧凑型的光纤延长器，功能性和效率高，成本低。SC多模光纤接头的特别设计，Crystalview DVI Micro Fiber延长DVI视频信号到最远1000米，最高分辨率1920X1200，距离越远，随着信号衰减，分辨率也越低。
产品规格
| Dimensions (W x D x H) | 1.57" x 2.61" x 0.59" (40 x 66 x 15 mm) |
| Weight | 0.6 lbs (0.25 kgs) |
| Power | Transmitter: Powered by computer DVI Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 2A 1W |
| Distance | 1920 x 1200: 1000' (300m) 1600 x 1200: 1650' (500m) 1280 x 1024: 2,300' (700m) |
| Connectors | Transmitter: Single-link DVI video: DVI male direct plug-in Fiber: Single multi-mode fiber with SC connector Receiver: Single-link DVI video: DVI male direct plug-in Fiber: Single multi-mode fiber with SC connector |
| Environment | Operating temperature: 32°F–122°F (0°C–50°C) Storage temperature: -4°F–158°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing |
部件编号
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-T1DFMDM | DVI video extender, single fiber, multi-mode |
| CRK-T1DFMDM/HDCP | DVI video extender, single fiber, multi-mode, HDCP |
